iBeam Master
Modular Beam Steering System
Adviesprijs:
€ 6.839,53
Barcode:
Categorieën: Seeburg Acoustic Line, Loudspeakers, iBeam Modular Beam Steering System,

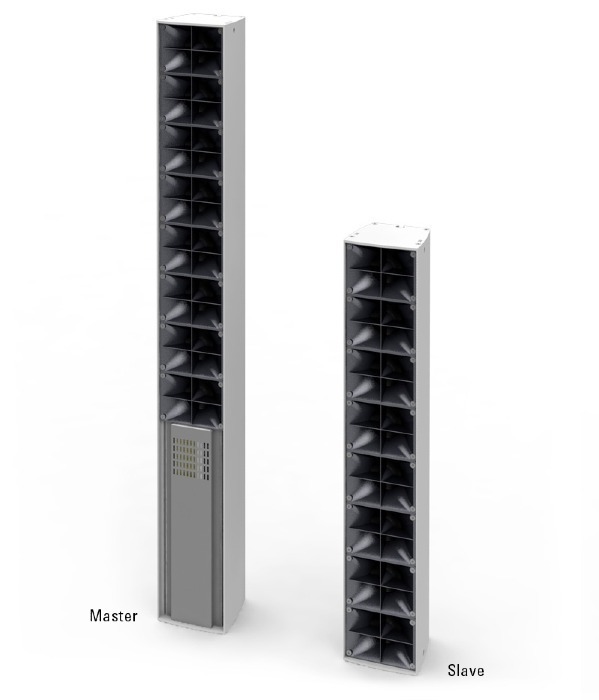

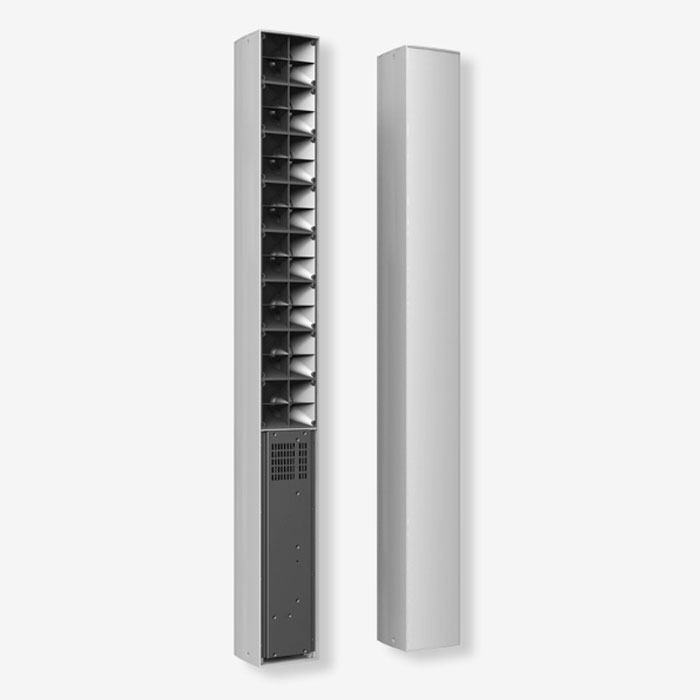

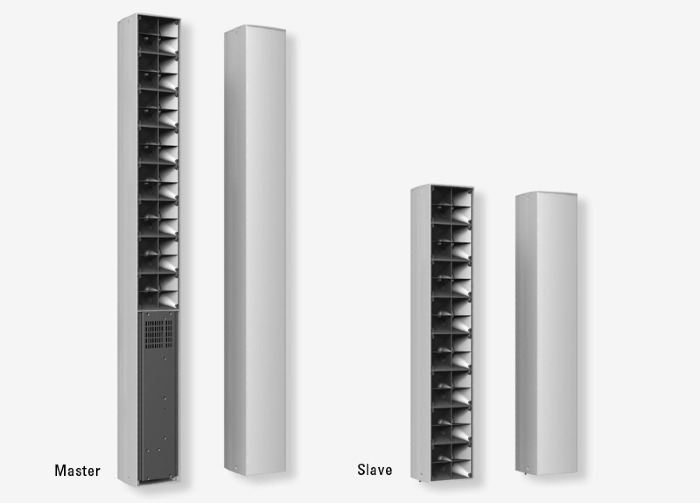

Beam steering line source loudspeaker with up to 24 DSP and amplifier channels. The modular system is based on the i Beam Master, containing eight 3“ broadband speakers, the DSP amplifier unit and a high-performance power supply. The system is expanded with up to two i Beam Slaves, which only contain the drivers and amplifiers. The relatively large cabinet volume ensures good speech reproduction without an additional subwoofer.Applications: Acoustically difficult rooms such as lecture halls, concert halls, churches, exhibition halls and foyers, in which a very even and low-feedback reproduction and at the same time an unobtrusive appearance are required.
Speaker Components
- 8 x 3“ Nd > Master
- 16 x 3“ Nd > Master + Slave
- 24 x 3“ Nd > Master + 2 x Slave
Description
- 24-way active beam steering DSP column system with
- FIR Array Beam Steering (FABS)
- and Mapping Optimiziation Mode (MOM)
Amp Power
- AES 8 x 44 W RMS = 352 W > Master
- 16 x 44 W RMS = 704 W > Master + Slave
- 24 x 20 W RMS = 480 W > Master + 2 x Slave
- Power Supply: 90-240 VAC
- Rated Current: tba.
Max. SPL Pink noise 1)
- 119 dB > Master
- 125 dB > Master + Slave
- 125 dB > Master + 2 x Slave
- Max. Input Signal: 28 dBu
- AD / DA: 24 bit / 48 kHz
- Usable Range: - 10 dB 110 Hz - 20 kHz
Coverage horizontal / vertical
- horizontal: 100° (1-3 kHz) und 80° (> 3 kHz)
- vertical: depends on preset
Connectors
- Neutrik XLR in, Phoenix,
- Neutrik PowerCon in, 3 x Ethernet RJ45

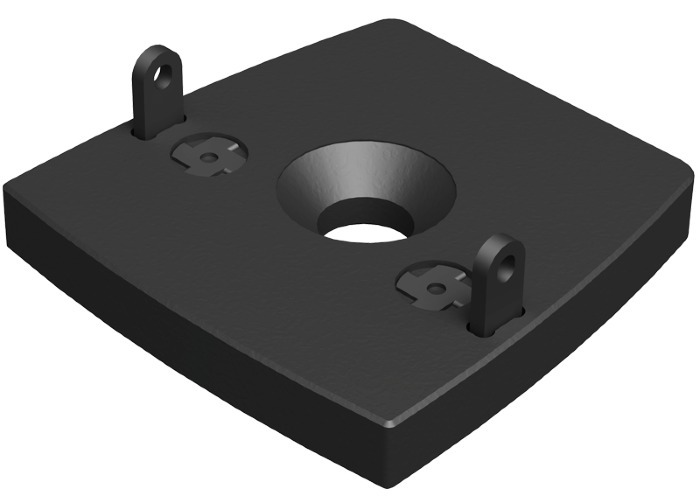

- Rigging / Fittings: Captive rigging system
- Rigging Components: Stainless steel, 1.4301 (t.b.u.)

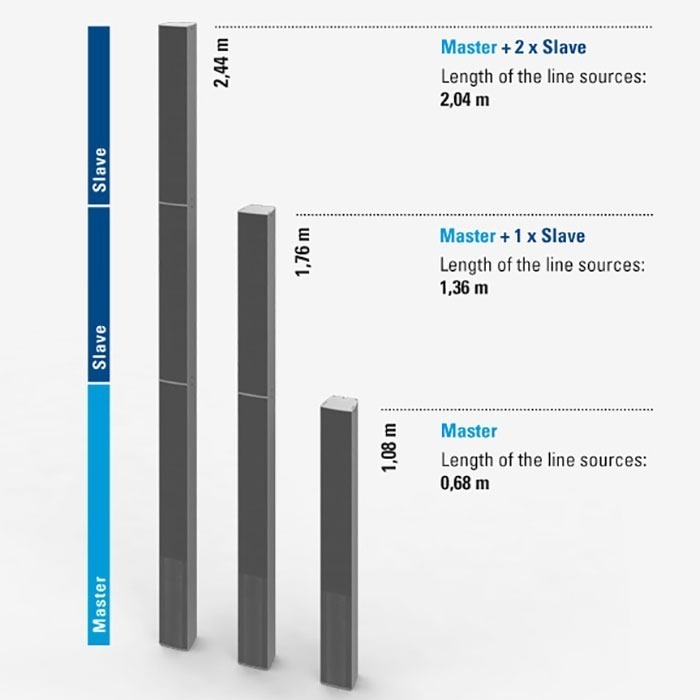

- Max. Array Size: 2 x Master + 4 x Slave
- Cabinet: Aluminum extrusion profile
- Front: Steel grille with anti-corrosion powder coating
- Finish: Powder coating
- Weight: 11,8 kg
- Size: height x width x depth 107,9 x 12,0 x 12,0 cm
